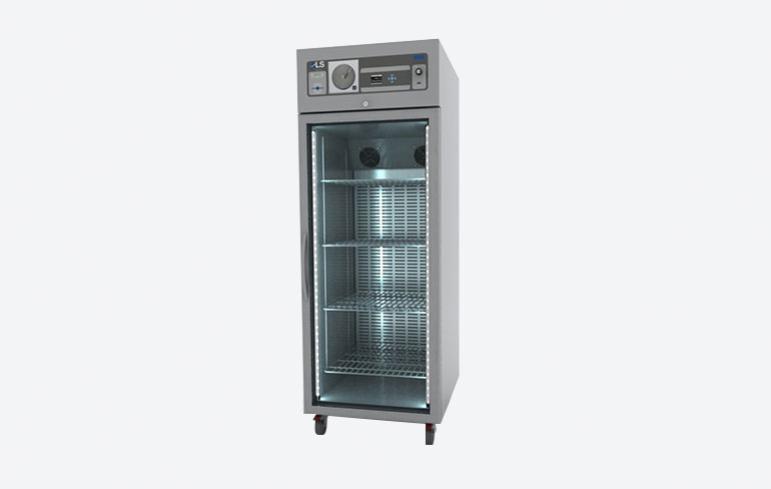

Emoplasmabank (300-700-1500 L)
The Emoplasmabank series by Angelantoni Life Science represents the high-quality range of +4°C/-20°C refrigerator-freezers used for the storage of blood, plasma, blood products and plasma derivatives. All equipment is certified according to the Medical Device Directive 93/42/EEC, demonstrating the company's great commitment to high-quality and reliability.
The complete series includes machines with the following volumes:
• 300 liters combined, with a +4°C 200 liter compartment and a -20°C 100 liter compartment (mod. Emoplasmabank 300)

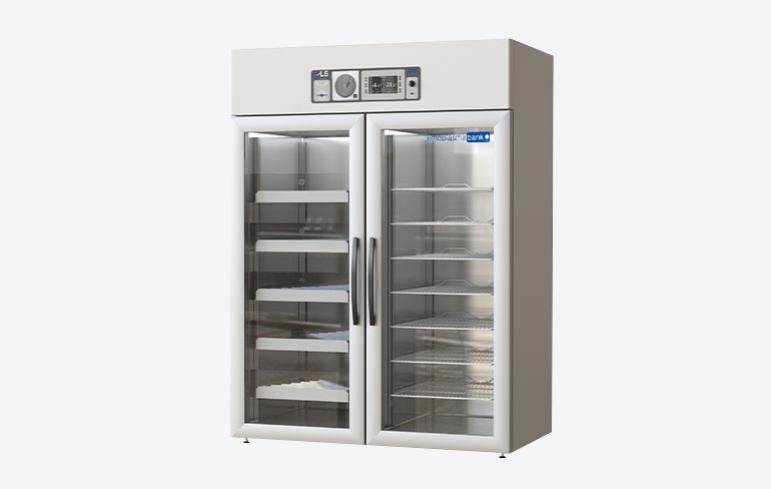

• 700 liters combined, with two 350 liter compartments, one at +4°C and one at -20°C (mod. Emoplasmabank 700)
• 1500 liters combined, with two 700 liter compartments, one at +4°C and one at -20°C (mod. Emoplasmabank 1500)
with glass or blind door executions.
The structure of the line is equipped with CFC-free, high-density injected polyurethane foam insulation, 60 mm thick for the 300 liter model and 75 mm thick for the 700 and 1500 liter models.
The electronic board is of the latest generation, with a 7-inch full-color touch screen display, complete with a system for recording parameters.
All recorded data can be transferred to a computer via USB drive.
- Glass door for both compartments
- Inside in stainless steel
- Mechanical lock with key
- Latest generation electronics
- USB port for data downloading
For further information please click on 'contact us' and fill in the form
- Mounted on wheels with brake
- GSM module for alarm signaling
- Ethernet modules for connection to local monitoring system
- Cryolog software for local monitoring
For further information please click on 'contact us' and fill in the form
The latest generation controller guarantees high performance and reliability thanks to:
- Simple and functional interface
- Password-protected access with 3 levels of privileges: USER, SERVICE and ADMINISTRATOR
- Three separate processors communicating with each other with CAN-BUS connection system
① Adjustment
② Alarm
③ System supervision/recording
The Alarm system ② has a dedicated PT100 probe, redundant with the one used for the Adjustment ①. Power is distributed to the two sections of ①Adjustment and ②Alarm which are physically separate (although mounted on the same support) and both have a dedicated power supply.
In case of the main power supply default, the alarm section ② continues to be powered by the back-up battery (with 36 hours autonomy) and provides power to the user panel ③ while maintaining the ability to display current data and store historical data.
The supervision unit ③ (user panel) constantly monitors and provides information on the correct operation of the alarm section ② and the control section ① and promptly notifies the user of any data storage anomalies.
Temperature | Available versions |
+4°C/-20°C | Emoplasmabank 300 |
+4°C/-20°C | Emoplasmabank 700 |
+4°C/-20°C | Emoplasmabank 1500 |
In compliance with Legislative Decree no. 219 of 2006 on the advertising of medical devices, all information contained on this site relating to medical devices is exclusively addressed to medical professionals and is not of advertising nature.
