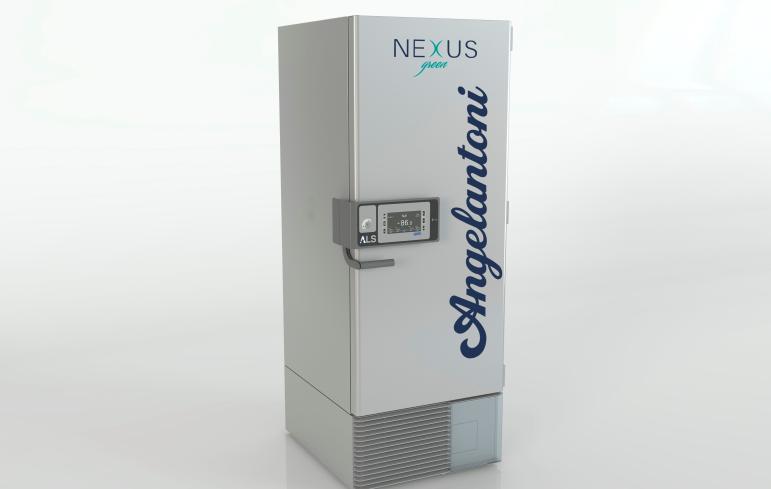

NEXUS Green V (340–530-810 L)
NEXUS green by Angelantoni Life Science is the line of laboratory ultra freezers with natural gas and inverter compressors.
The series includes 340, 530- and 810-liter upright freezers models running with natural refrigerant gas (HC) and equipped with inverter compressors.
All the machines are equipped with a blind door with mechanical locking and key and, optionally, equipped with opening through a personal ID card with RFID technology (BIOGUARD®). Inside, the freezers offer, in different configurations, counter doors that limit heat exchange to a minimum when opening the main door
The working temperature is -80 ° C.
The structure of the NEXUS Green V line is equipped with CFC-free, injected high-density polyurethane foam insulation, 140 mm thick with the exception of the NexusSlim Green 810 model whose insulation is made from a combination of vacuum panels (VIP) and PU foams whose overall thickness is 70 mm.
The electronic board is of the latest generation, with a 7-inch full color touch screen display, complete with a system for registering parameters.
All recorded data can be transferred to a computer via USB drive, or with WiFi / Ethernet / 3G network technologies available through the use of appropriate accessory modules.
It is also possible to transfer and store the same data on a dedicated ALS server through the CLOUD service made available.
- Blind door
- Inside in stainless steel
- Mechanical lock with key
- Latest generation electronics
- USB port for data downloading
- Bioguard® access control system
- Weekly chart recorder
- GSM module for alarm signaling
- WiFi, ETH and UMTS-3G modules for connection to the ALS Cloud
- Cryolog software for local monitoring
The latest generation controller guarantees high performance and reliability thanks to:
- Simple and functional interface
- Password-protected access with 3 levels of privileges: USER, SERVICE and ADMINISTRATOR
- Three separate processors communicating with each other with CAN-BUS connection system
① Adjustment
② Alarm
③ System supervision/recording
The Alarm system ② has a dedicated PT100 probe, redundant with the one used for the Adjustment ①. Power is distributed to the two sections of ①Adjustment and ②Alarm which are physically separate (although mounted on the same support) and both have a dedicated power supply.
In case of the main power supply default, the alarm section ② continues to be powered by the back-up battery (with 36 hours autonomy) and provides power to the user panel ③ while maintaining the ability to display current data and store historical data.
The supervision unit ③ (user panel) constantly monitors and provides information on the correct operation of the alarm section ② and the control section ① and promptly notifies the user of any data storage anomalies.
Temperature | Available versions |
-80°C | 340 V-3 |
-80°C | 340 V-4 |
-80°C | 530 V-3 |
-80°C | 530 V-4 |
-80°C | 810 V-4 |
-80°C | 810 V-5 |
